How to Replace a Sprinkler Head in 15 Minutes (DIY Guide)

You walk out to check your lawn and one head is geysering straight up like Old Faithful. Or it’s not popping up at all. Or the spray pattern is hitting the side of your house instead of the grass. Whatever the symptom, the answer is usually the same: that head needs to come out and a new one needs to go in.

The good news is replacing a sprinkler head is one of the easiest DIY repairs in your entire yard. No special tools. No plumbing experience. No standing water. If you can unscrew a jar of pickles, you can replace a sprinkler head.

Here’s exactly how to do it, start to finish, in about fifteen minutes.

What You’ll Need

You don’t need much. Most of this is probably already in your garage.

• A replacement sprinkler head (the right type for your system)
• A small hand trowel or garden shovel
• A rag or old towel
• Teflon tape (optional but helpful)
• A flathead screwdriver (for adjusting the new head)

That’s the whole list. No wrenches, no PVC primer, no glue. Modern pop-up heads thread onto a fitting that’s already in the ground. The whole job is unscrew, replace, screw back in.

Step 1: Identify the Right Replacement Head

This is the part most people get wrong. There are dozens of different sprinkler heads on the market and they’re not all interchangeable.

Take the broken head out of the ground first (we’ll cover how in Step 3) and bring it with you to the store, or look at the brand stamped on the top. The most common brands are Hunter, Rain Bird, Toro, Orbit, and K-Rain. Most homeowners can replace a head with the same brand and same type and the new one will drop right in.

The other thing to match is the spray type. There are three basic kinds:

Pop-up spray heads. These pop up a few inches and spray a fixed pattern. Best for small areas like flower beds and tight spaces.

Rotor heads. These pop up and slowly rotate, throwing water across larger areas. Best for big lawns and longer throws.

Multi-stream rotary heads. A newer style that throws several streams at once for better water efficiency. More expensive but uses less water.

If you don’t know what you have, take a picture or take the old head with you. The hardware store can match it.

Step 2: Turn Off the Zone

Before you start digging, shut off the water to that zone. You can do this two ways.

At the controller: Find the sprinkler controller (usually in the garage or on a wall outside) and either turn off the system entirely or skip the affected zone in the schedule. If you’re working on it during the day and the system isn’t running, you may not need to do this at all.

At the valve: Every zone has a control valve, usually in a green box buried in the ground. You can turn the bleeder screw on top of the valve to manually shut off water to that zone. This is the safer option if you want to be sure no water comes out while you’re working.

For a quick head swap, turning off the controller is usually enough. The water in the line will drain out as soon as you remove the head.

Step 3: Dig Out the Old Head

Use your hand trowel to carefully cut around the head in a circle about six inches wide. Lift out the chunk of grass and dirt, set it aside. You should now be able to see the head and the fitting it’s threaded into.

Don’t dig too deep. The fitting (usually a small plastic elbow or coupling) is connected to the lateral line, which is the PVC pipe running through your yard. You want to expose the head and the top of the fitting, not the pipe itself.

Once you can see what you’re working with, grab the head firmly and unscrew it counterclockwise. It should come out by hand. If it’s stuck, wrap a rag around it for grip and try again. If it’s really stuck, you may need pliers, but be gentle so you don’t crack the fitting underneath.

Step 4: Inspect the Fitting

Before you put the new head in, look at the threads on the fitting that’s still in the ground. They should be clean and intact. If you see cracks, broken plastic, or dirt packed into the threads, clean it out with your finger or a rag.

If the fitting itself is broken, you’ve got a slightly bigger job. The fitting can be unscrewed and replaced, but the pipe below it is glued in. For most homeowners, a broken fitting is the point where you call a pro. For everyone else, the threads should be fine and you can move on.

Step 5: Install the New Head

Wrap a few turns of Teflon tape around the threads of the new head. This isn’t strictly required but it helps create a watertight seal and makes future removal easier.

Thread the new head into the fitting by hand, turning clockwise. Snug it down until it’s hand-tight. Don’t overtighten. You can crack the fitting if you crank on it.

Make sure the head is sitting at the right height. The top of the head should be flush with the surrounding soil so the mower can pass over it without hitting it. If the head is too low, you may need a riser extension (a small threaded PVC piece that adds height). If it’s too high, you’ll need to dig out a little more soil underneath the fitting.

Step 6: Backfill and Replace the Sod

Pack the soil back around the head in thin layers, tamping each layer down with your fingers or the end of the trowel. Don’t just dump loose dirt in the hole. Loose soil settles fast and you’ll be back out here in a month with a sunken head.

Once the soil is packed, set the chunk of grass back on top and press it down firmly. Water it in lightly to help it knit back together.

Step 7: Test and Adjust

Turn the zone back on and watch the new head through a full cycle. Things to check:

• Does it pop up fully?
• Is the spray pattern correct (full circle, half, quarter, etc.)?
• Is it spraying the right area, or is it hitting the driveway or the side of the house?
• Does it retract cleanly when the zone shuts off?

Most heads have an adjustment screw on top that lets you change the throw distance and the spray arc. A flathead screwdriver and thirty seconds of fiddling will dial it in.

How to Make Sure You Don’t Have to Do This Again

Here’s the part most DIY guides skip. You just spent fifteen minutes replacing a head. Why did the old one fail in the first place?

In our experience, the answer is almost always one of three things: the mower hit it, the trimmer cracked it, or it sank below grade and got run over. All three of those problems have the same prevention: a physical barrier around the head that protects it from impact and keeps it visible.

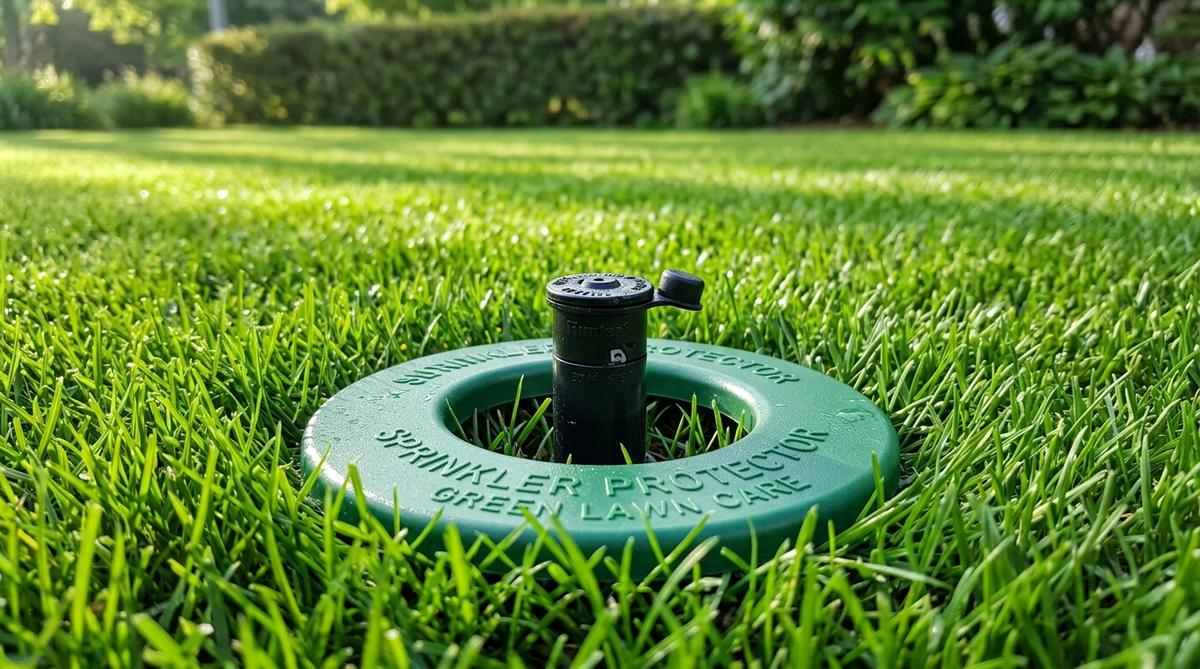

A Sprinkler-Guard fits around the head at ground level, distributes mower weight across a wider area, and keeps grass from growing over the top. It’s the difference between replacing a head every year and replacing one every ten years.

If you just replaced a broken head, this is the perfect time to install protection. The hole is already dug. The head is already exposed. Snap the protector around it before you backfill and you’re done. One install. One time. Problem solved.

Frequently Asked Questions

Can I replace a sprinkler head myself?

Yes. It’s one of the easiest DIY repairs in your yard. Most replacements take fifteen minutes or less and require no special tools. The only situation that calls for a pro is when the fitting under the head is broken, which is rare.

How much does it cost to replace a sprinkler head?

The head itself costs $5 to $25 depending on the type. Doing it yourself, the total cost is just the head. Hiring a pro typically runs $75 to $150 for a single head replacement, mostly because of the service call minimum.

How do I know if my sprinkler head is broken?

Common signs: water shooting straight up instead of in a pattern, no water coming out at all, water leaking around the base of the head, the head won’t retract after the zone shuts off, or the head is cracked or visibly damaged. Any of these means it’s time for a replacement.

Do I need to turn off the water to replace a sprinkler head?

It’s safest to shut off the zone at the controller or valve before you start. The water in the lateral line will drain out when you unscrew the head, so you won’t get sprayed, but you don’t want the system to come on mid-repair.

How long do sprinkler heads last?

A protected sprinkler head can last ten years or more. An unprotected head in a high-traffic area where it gets hit by mowers and trimmers might fail in one or two seasons. The single biggest factor is whether anything is physically protecting the head from impact damage.
